Small, portable, mobile.
RFID & NFC Desktop Reader
Whether you want to read customer cards, start charging processes or program your own NFC solutions, our reliable RFID and NFC desktop readers cover almost every application.
We would be happy to assist you in selecting the right RFID or NFC solution.
Get in touch with us!

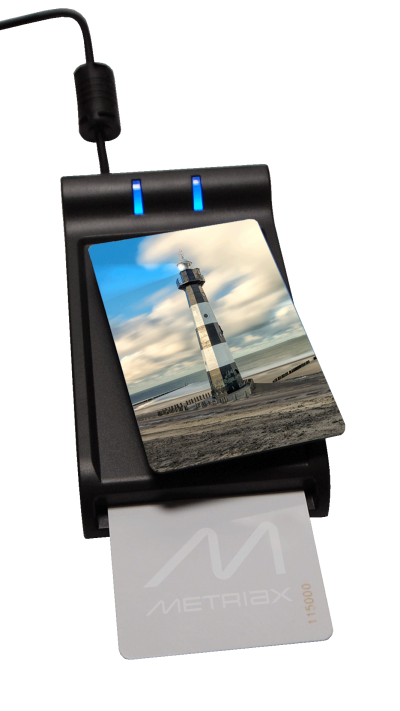

MDE-620: The desktop reader for contactless & contact applications
Mature, reliable, in use worldwide.
he MDE-620 is an innovative, sophisticated RFID reader that can read contactless RFID & NFC cards as well as contact chip cards with built-in chip. This makes it suitable as an RFID / NFC desktop reader for a wide range of applications, especially where both contactless and contact smart cards are still used.
Available as USB or RS-232 version.
SDK available free of charge.
We are happy to advise you!
- ISO 7816, ISO 14443 A/B, ISO 15693, ISO 18092 (NFC), NFC P2P, MIFARE Classic®, MIFARE Ultralight®, MIFARE Plus®, MIFARE® DESFire®, NTAG®, FeliCa®
- USB / RS-232 Interface
- Elegant design for visible applications
- 2 Status LED's in Blue
- SDK free of charge
- 68 x 120 x 30 mm
- Can be used in the same way as QDE-620
- Dimensions: 68 mm x 120 mm x 30 mm
- ISO 7816, ISO 14443 A/B, ISO 15693, ISO 18092 (NFC), MIFARE Classic®, MIFARE Ultralight®, MIFARE Plus®, MIFARE® DESFire®, NTAG®, FeliCa®
- Frequency 13,56 Mhz
- IP65 dustproof & water jet protected
- CE, RoHS & REACH compliant
The MDE-620 desktop reader is exactly the right choice if you want to use or accept contactless cards, such as RFID & NFC cards, as well as contact smart cards.
In use, the MDE-620 RFID desktop reader convinces with easy handling and absolute reliability.
The application range is manifold, among others the MDE-620 table reader is used in access control for devices or machines, for check-in, in the collection of print jobs or in voucher management.
For NFC developers we are happy to provide a special SDK.
Do you have further questions about the MDE-620?
Our service team will be happy to advise you on +49 (0)202 47 95 770 or by mail at team@metriax.de.
A wide range of firmware variants are available for the MDE-620 so that the device can be optimally adapted to your application. We are happy to assist you in selecting the right firmware.
For NFC developers we have a special SDK & FDK available.
Possible modes for the MDE-620 are:
- PC/SC-Mode
- Vendor-Mode
- HID-Mode
The following interfaces are possible:
- USB
- RS-232
We would be happy to provide you with the data sheets and further information for the MDE-620 RFID NFC desktop reader.
Please send us a short email to team@metriax.de.
We are also happy to offer you the matching contactless cards and transponders for the MDE-620 desktop reader.
Here you will find a selection of our cards and keyfobs.

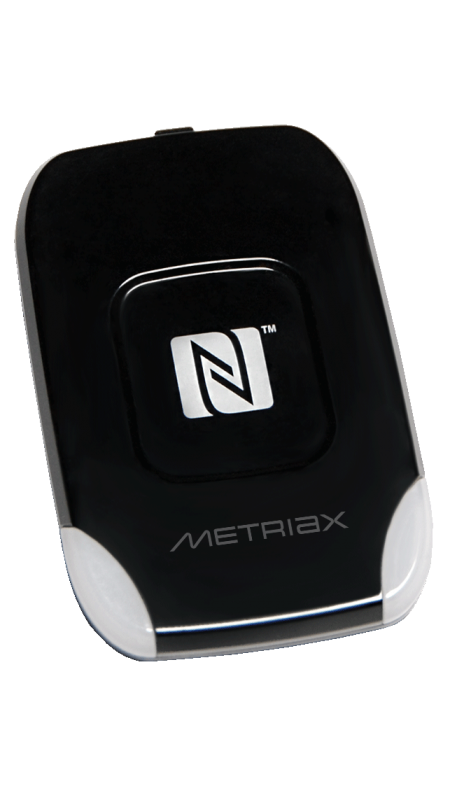

MDE Dragon Bluetooth / BLE : Mobile and flexible.
Wireless, handy, always ready.
The MDE-Dragon Bluetooth / BLE is a universally applicable RFID / NFC TAG table reader. It convinces with easy commissioning and wireless handling.
Specially developed for environments where high expectations are placed on haptics and optics.
Additional contact cards (1 SAM slot) can be used for secure data transmission based on ISO7816.
Optionally available as USB device.
SDK available free of charge.
We are happy to advise you!
- ISO 14443 A/B, ISO 15693, ISO 18092 (NFC) (T1T/T2T/T3T/T4T), MIFARE Classic®, MIFARE Ultralight®, MIFARE Plus®, MIFARE® DESFire®, NTAG®, FeliCa®
- Elegant design for visible applications
- Bluetooth / BLE 4.0 Schnittstelle
- 1 SAM slot for ISO 7816 communication
- 4 Status LED in Red / Blue
- SDK & NFC Manager package free of charge
- Special SDK for NFC developers
- 60 x 103 x 11,5 mm
- Can be used in the same way as QDE-Dragon-BT
- Dimensions: 60 mm x 103 mm x 11,5 mm
- ISO 14443 A/B, ISO 15693, ISO 18092 (NFC), MIFARE Classic®, MIFARE Ultralight®, MIFARE Plus®, MIFARE® DESFire®, NTAG®, FeliCa®
- 1 SAM for ISO 7816 communication
- Contactless communication via Bluetooth, charging via Micro USB
- CE, RoHS & REACH compliant
The MDE-Dragon Bluetooth is the right device if you are looking for a handy and wireless usable NFC reader.
With the associated NFC Manager package with open programming, the MDE-Dragon supports developers and software engineers in creating a variety of applications based on NFC technology.
Classic application areas are mobile applications, such as:
- Contactless payment systems
- Access control
- Time and attendance
- Product and brand marketing
- Event management
- Smart home solutions
The MDE-Dragon supports all NFC-Forum tags (type 1 to 4, T1T/T2T/T3T/T4T) and the NFC Peer-to-Peer communication (P2P).
We will be happy to advise you individually on +49 (0)202 47 95 770 or at team@metriax.de!
GAP, GATT, Device Info, Tx Power, Battery, Proximity, NFC Tag
For the MDE-Dragon Bluetooth desktop reader different firmware variants are available, so that the device can be optimally adapted to your application. We are happy to assist you in selecting the right firmware.
For NFC developers we have a special SDK & FDK available.
The MDE-Dragon can be used in the following modes, among others:
- PC/SC-Mode
- Vendor-Mode
- HID-Mode
The following interfaces are possible:
- Bluetooth
- BLE 4.0
- Micro USB (Communication & Charging)
We will be happy to provide you with data sheets and further information.
For this purpose, please send us a short email to team@metriax.de.
We are also happy to offer you the matching contactless cards and transponders for the MDE-Dragon Bluetooth reader.
Here you will find a selection of our cards and keyfobs.

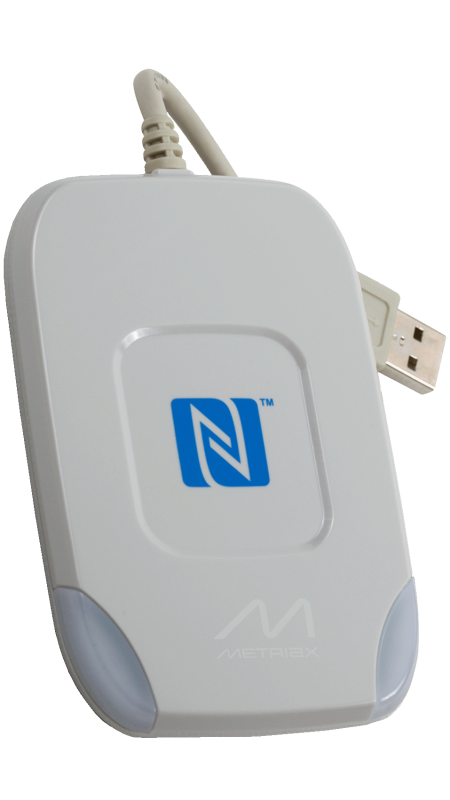

MDE-Dragon USB: Sophisticated technology for your NFC application.
Handy, easy to use, high performing.
The MDE-Dragon USB is a universally applicable RFID / NFC desktop reader for contactless cards, which convinces by absolute reliability.
With its associated NFC Manager package with open programming, it supports developers and software engineers in creating a wide range of NFC applications. Alternatively, a wide range of existing firmware solutions can be used.
The MDE Dragon supports ISO 14443 A/B, the Mifare® series, FeliCa® and NFC (ISO18092) protocols.
ISO 15693 optional.
Additional contact cards (1 SAM slot) can be used for secure data transmission based on ISO7816.
Optionally also available wireless as Bluetooth variant.
SDK available free of charge.
We are happy to advise you!
- ISO 14443 A/B, ISO 15693 optional, ISO 18092 (NFC), MIFARE Classic®, MIFARE Ultralight®, MIFARE Plus®, MIFARE® DESFire®, NTAG®, FeliCa®, CIPURSE™
- USB Interface
- Elegant design for visible application
- 4 LED's
- SDK & NFC Manager package free of charge
- Special SDK for NFC developers
- 62 x 95 x 13 mm
- Can be used in the same way as QDE-Dragon-U
- Dimensions: 62 mm x 95 mm x 13 mm
- ISO 14443 A/B, ISO 15693 option, ISO 18092 (NFC), MIFARE Classic®, MIFARE Ultralight®, MIFARE Plus®, MIFARE® DESFire®, NTAG®, FeliCa®, CIPURSE™
- 1 SAM for ISO 7816 communication
- Frequency 13,56 Mhz
- CE, RoHS & REACH compliant
The MDE-Dragon USB is the right device if you are looking for a universal RFID / NFC desktop reader for contactless transponders (e.g. NFC cards or RFID key fobs).
This RFID desktop reader convinces with absolute reliability and easy handling.
With the accompanying NFC Manager package with open programming, the MDE-Dragon supports developers and software engineers in creating a variety of applications based on NFC technology.
If you do not want to develop yourself, you can choose from a wide range of existing firmware solutions.
Classic application areas of the MDE-Dragon desktop table reader are stationary RFID and NFC applications:
- Contactless payment systems
- Loyalty cards
- Access control
- Time recording
- Rental systems
- Smart home solutions
In doing so, the MDE-Dragon supports all NFC forum tags (type 1 to 5, T1T/T2T/T3T/T4T/T5T, NFC peer-to-peer communication (P2P) and is USB PC/SC compliant.
The MDE Dragon can be used in different modes:
- PC/SC-Mode
- Vendor-Mode
- HID-Mode
We will be happy to advise you individually on +49 (0)202 47 95 770 or at team@metriax.de!
Various firmware variants are available for the MDE-Dragon USB desktop reader so that the device can be optimally adapted to your application. We are happy to assist you in selecting the right firmware.
For NFC developers we have a special SDK & FDK ready.
The MDE Dragon can be used in the following modes, among others:
- PC/SC-Mode
- Vendor-Mode
- HID-Mode
The following interfaces are possible:
- USB
- RS-232 (option)
We would be pleased to provide you with the corresponding data sheets and further information for the MDE-Dragon desktop reader.
Please send us a short email to team@metriax.de.
We are also happy to offer you the matching contactless cards and transponders for the MDE-Dragon Bluetooth reader.
Here you will find a selection of our cards and keyfobs.
Have you found all you need? Our customer service will be happy to help!
We are looking forward to meeting you!
